PROJECT 3

Project Statement:

The objective of this project was to design a non-denominational chapel on the campus of Farmingdale State College. The College would like the students to design a spiritual space, where people of all faith can worship. The College administration believes that spirituality can be achieved by bringing natural light into the building as Greeks and Romans did. Students were required to select a location of their choice facing a public space and should be integrated into the campus fabric.

Existing Site Pictures:

Contextual Analysis:

Preliminary Program:

Chapel (Sacred Spaces - light oriented)

Main Chapel; 50 people
Memorial Chapel (small - looking back on loss and regret)
Meditation Chapel (small - looking forward on life's choices)
Lobby

Offices / Utility (Secular - built context-oriented)

Secretary Office
Clergy’s Office
Small Library and Conference Room
Toilets

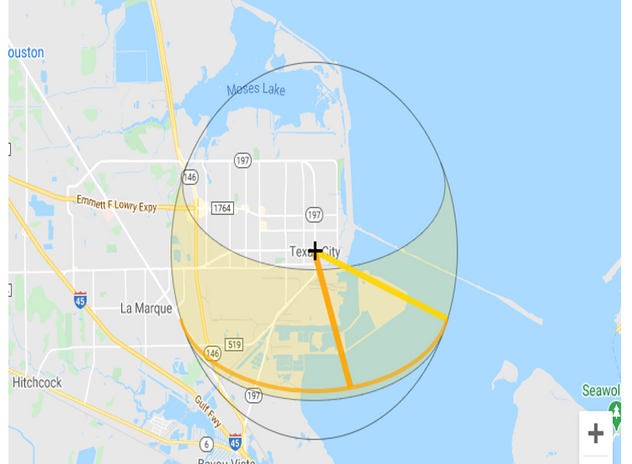

Site Anaylsis:

Site analysis 1.PNG

Site analysis 2.PNG

Site analysis 4.PNG

Site analysis 3.PNG

Site anaylsis 5.PNG

To play, press and hold the enter key. To stop, release the enter key.

Inspired Research and Architectural Precedents:

Kimbell Art Museum Designed by Loius Kahn

3D Light Sketch Models to Test Idea:

Light Box 1:

Light Box 2:

Light Box 3:

Preliminary 2D and 3D Design

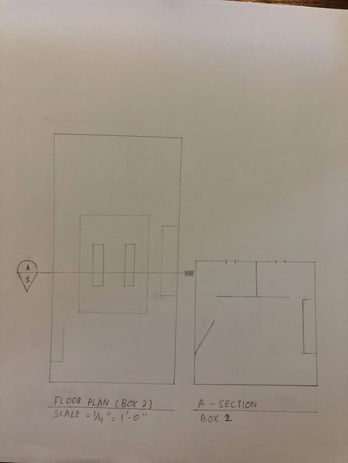

Prelim floor plan.PNG

Site Plan In Context:

Site plan.PNG

render 11.PNG

Building Plans:

Proposed plan.PNG

Elevation:

front elevation.PNG

North

right elevation.PNG

East

Back eleavtion.PNG

South

left elevation.PNG

West

3D Exterior Renderings:

Render 1.png

Render 2.png

Render 3.png

Render 4.png

3D Sections:

SEction 3d (1).PNG

Section 3d (2).PNG

section (3).PNG

section 1.png

section render.png

3d section.PNG

section render 3.png

section render 4.png

2D Sections:

2d Sections.PNG

2d section 2.PNG
